Wireless

Standards

IEEE 802.11b/g/n 2.4GHz

IEEE 802.11a/n/ac 5GHz

Signal Rate

Up to 300Mbps2.4GHz

UP to 867Mbps 5GHz

Frequency Range

2.4-2.4835GHz;5.180-5.825GHZ

Transmit Power

20dBm(MAX)

Data Transfer Rate

802.11ac:

80MHZ(433Mbps, 867Mbps)

802.11n: 40MHz(300Mbps, 270Mbps, 240Mbps, 180Mbps, 120Mbps, 90Mbps, 60Mbps, 30Mbps)

20MHz (144Mbps, 130Mbps, 115Mbps, 86Mbps, 57Mbps, 43Mbps, 28Mbps, 14Mbps) (Auto-Sense)

802.11g:

(54Mbps, 48Mbps, 36Mbps, 24Mbps, 18Mbps, 12Mbps, 11Mbps, 9Mbps, 6Mbps)

802.11b:

(11Mbps,9Mbps, 6Mbps, 5.5Mbps, 2Mbps, 1Mbps)

Wireless Modes

AP, Repeater, Client, Multi-SSID

Wireless Security

WEP/WPA-PSK/WPA2-PSK Encryption

Wireless MAC Filtering

Hardware

Standards

IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T

Interface

1*10/100/1000Mbps Auto MDI/MDIX RJ45 WAN port

3*10/100/1000Mbps Auto MDI/MDIX RJ45 LAN port

LED Indicators

SYS, WPS, 5G, 2.4G, WAN, LAN1~LAN4

Buttons

Reset

Antenna

4* external fixed 5dBi antenna

Power Supply

DC 12V/1.0A(Output)

Dimensions (L x W x H )

182 x 108 x 25mm

Software

WAN Type

DHCP, Static IP, PPPoE, L2TP, PPTP, WISP

Others

Bandwidth Control, Access Control, IPTV, Virtual Server, DMZ,

VPN Pass-through, Dynamic DNS, Static Routing, Backup & Restore

Support TR069

Certification

FCC, CE, EAC

Environment

Operating Temperature: 0℃~40℃

Storage Temperature: -40℃~70℃

Operating Humidity: 10%~90% non-condensing

Storage Humidity: 5%~90% non-condensing

Package

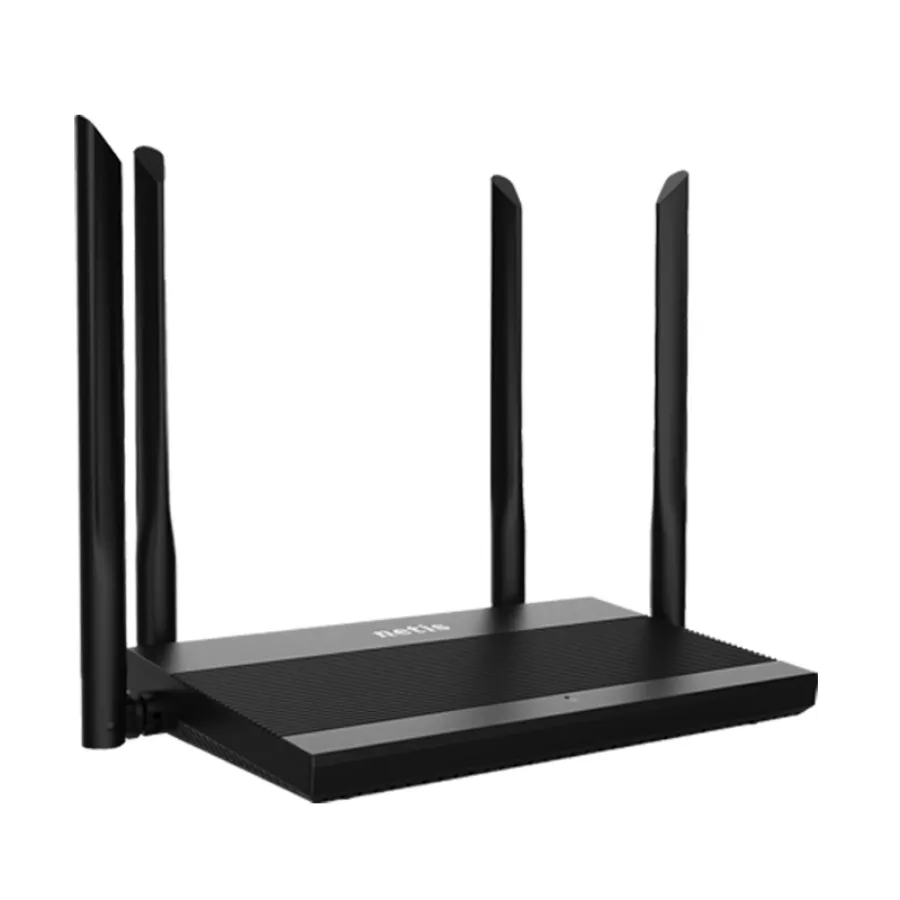

1* N3

1* 12V/1.0A Power Adapter

1* Quick Installation Guide (Multilingual
