Wireless

Standards

IEEE 802.11b, IEEE 802.11g, IEEE 802.11nSignal Rate

Up to 300MbpsFrequency Range

2.4-2.4835GHzTransmit Power

20dBm(MAX)Data Transfer Rate

802.11n:

40MHz (300Mbps, 270Mbps, 240Mbps, 180Mbps, 120Mbps, 90Mbps, 60Mbps, 30Mbps)

20MHz (144Mbps, 130Mbps, 115Mbps, 86Mbps, 57Mbps, 43Mbps, 28Mbps, 14Mbps) (Auto-Sense)

801.11g:

(54Mbps, 48Mbps, 36Mbps, 24Mbps, 18Mbps, 12Mbps, 11Mbps, 9Mbps, 6Mbps)

802.11b:

(11Mbps, 9Mbps, 6Mbps, 5.5Mbps, 2Mbps, 1Mbps)Wireless Mode

AP, Repeater, AP+WDS, WDS, Client, Multi-SSIDWireless Security

64/128-bit WEP,

WPA-PSK/WPA2-PSK (TKIP/AES)

SSID Broadcast Enable/Disable

Wireless MAC FilteringHardware

Standards

IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TXInterface

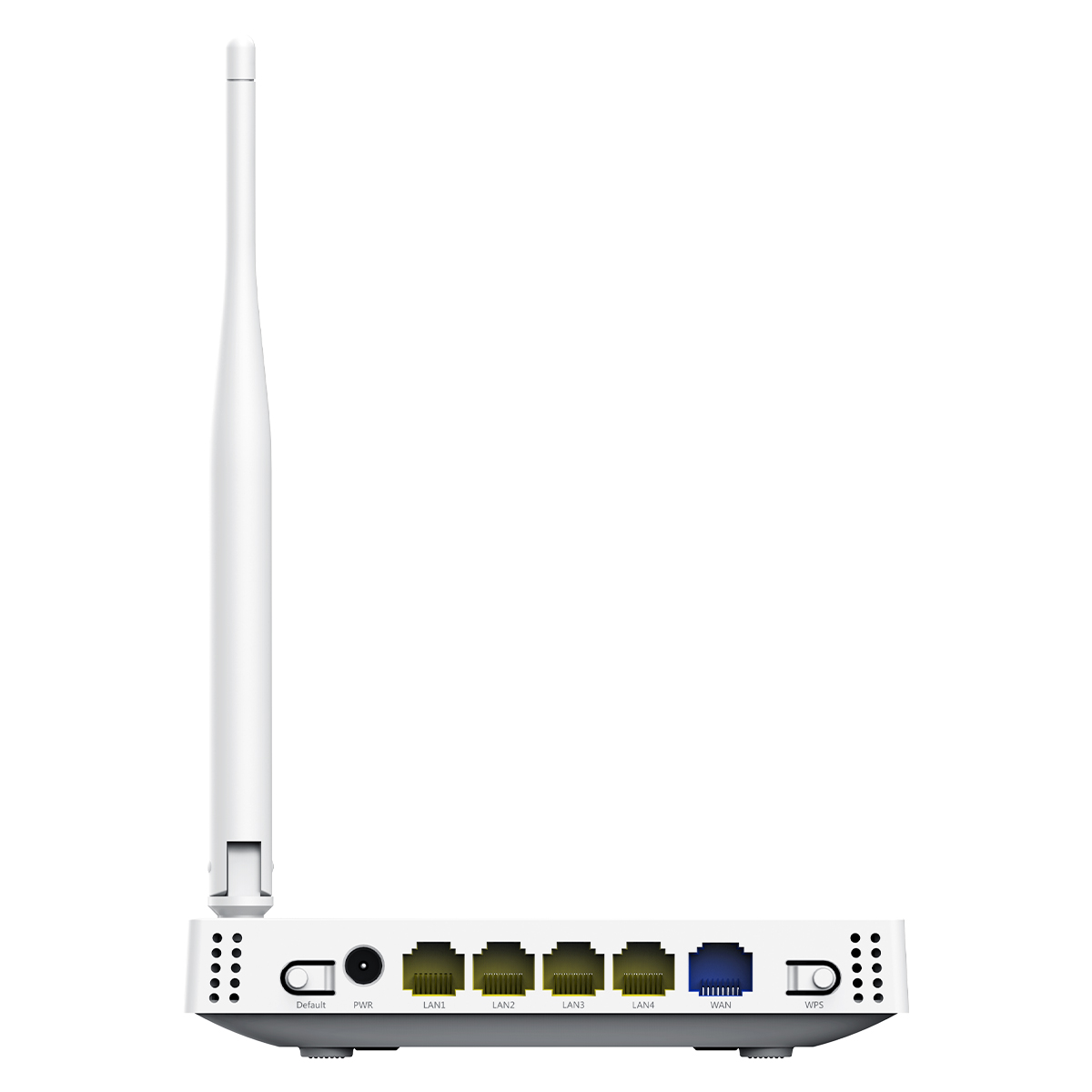

1 * 10/100Mbps Auto MDI/MDIX RJ45 WAN port

4 * 10/100Mbps Auto MDI/MDIX RJ45 LAN portLED

PWR, WLAN, LAN1-LAN4, WAN, WPSButton

WPS, DefaultAntenna

2* 5dBi Fixed AntennaPower Supply

DC 9V/500mA (Output)Software

WAN Type

DHCP, Static IP, PPPoE, L2TP, PPTP, Dual Access, WISPPort Forwarding

Virtual Servers, Port Triggering, UPnP, DMZ, FTP Private PortQoS

WMM, Bandwidth ControlAccess Control

IP/MAC/Domain FilteringVPN Pass-through

PPTP, L2TP, IPSecOthers

IPTV, Dynamic DNS, Static Routing, WOL, Backup & Restore, Firmware UpgradeOthers

Certification

FCC, CEEnvironment

Operating Temperature: 0℃~40℃

Storage Temperature: -40℃~70℃

Operating Humidity: 10%~90% non-condensing

Storage Humidity: 5%~90% non-condensingPackage

1* WF2419E

1* 9V/500mA Power Adapter

1* Ethernet Cable

1* Quick Installation Guide (Multilingual)
